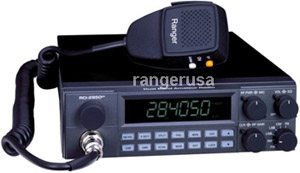

RANGER RCI-2950 DX
Product #:
1006195
Description:
Ranger Communications announced that the warranty period on the new RCI-2950DX has been increased from the previous 1 year time period to a full 2 year warranty. This includes parts and labor. Ranger believes that with the new surface mount technology (SMT) implemented within the design of these models, the resistance to shock and vibration has greatly increased and the DX Series should have the longer warranty period.
• Frequency Range,10 Mtr: 28.000 - 29.6999 MHz/12 Mtr: 24.8900 - 24.9900 MHz
• Tuning Steps, 1 MHz, 100 KHz, 10 KHz, 1 KHz, 100 Hz
• Emission, USB, LSB, CW, AM, FM
• Frequency Tolerance, 0.005%
• Frequency Control, Microprocessor / Phase-Locked-Loop Synthesizer
• Frequency Stability, 0.001%
• Operating Temperature Range, -10 C to +50 C
• Meter Function, RF Output, RX Signal Strength, Modulation, SWR (LCD Display Indicates Relative Values)
• Antenna Impedance, 50 W **Input Voltage, 13.8 Vdc
• Microphone, 400 W Dynamic PTT - 6 Pin
• Size (W x D x H), 7" x 10" x 2-3/8"
• Weight, 4 lb. 3 oz.
• RF Power Output, 10 Watts RMS: CW/AM/FM-25 Watts: SSB (PEP)
• Current Draw @ Full Power, RCI-2950DX -4.8 Amps
• Modes: USB, LSB, CW, AM, FM, PA
• CW Keying, Semi break-in
• Carrier Suppression, -50 dB
• Spurious Emission, -50 dB
• Antenna Connector, UHF Type, 50 W
• Sensitivity: AM/CW: 0.5V for 10db, SINAD-FM: 0.25V for 12db, SINAD-SSB: 0.15V for 10db SINAD
• Receiver Sensitivity: -55db
• Image Rejection Ratio, -65 db
• Audio Output Power, 2.5 Watts @ 10% THD into 8W
