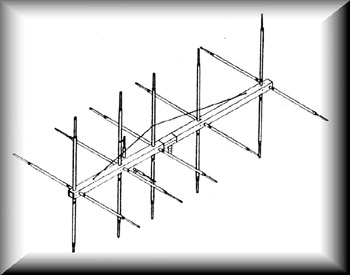

JO GUNN JG 5+5 CROSS
Product #:
1005185
Palco Price:
$CALL
Description:
The CROSS Antennas are hard hitting ground wave antennas. With power handling capabilities of 5 KW, these antennas have a separate horizontal and vertical polarization. The CROSS Antennas are also excellent for 10 meter use, and are available in the 10 Meter Series by request.
* TYPE: Horz. & Vert. Polarization Twin Feed
* GAIN: 16.5 DB
* FRONT TO BACK RATIO: 48 DB True
* SIDE REJECTION: 50-55 DB True
* BACK REJECTION: 48 DB True
* WEIGHT: 41 lbs.
* LENGTH: 18 feet
* SWR: 1.1
* HORZ. to VERT. SEPARATION: 25-30 DB
* WIND SURVIVAL: 100 MPH
* POWER MULTIPLICATION: 65X
* AUDIO GAIN: 22 DB
* WIND LOAD: 6.5
