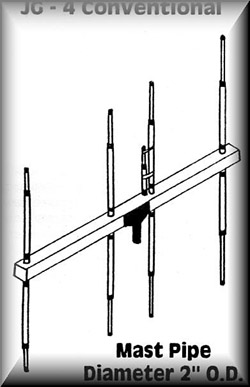

JO GUNN JG 4 CONVENTIONAL
Product #:
1005180
Palco Price:
$CALL
Description:
The CONVENTIONAL Antennas are designed for the Single Polarity operator. Whether it be Horizontal or Vertical, these antennas will give high performance in single polarity applications. They will handle a standard of 5 KW. The CONVENTIONAL Antennas are also excellent for 10 Meter use and are available in the 10 Meter Series by request.
* TYPE: Horz. or Vert. Polarization
* GAIN: 15.5 DB
* FRONT TO BACK RATIO: 45 DB True
* SIDE REJECTION: 45-50 DB True
* BACK REJECTION: 45 DB True
* WEIGHT: 20 lbs.
* LENGTH: 12 feet
* SWR: 1.1
* WIND SURVIVAL: 100 MPH
* POWER MULTIPLICATION: 50X
* AUDIO GAIN: 19 DB
* WIND LOAD: 3.0
